F型搪玻璃蒸馏罐
公称容积 VN(L) K300
图文详情

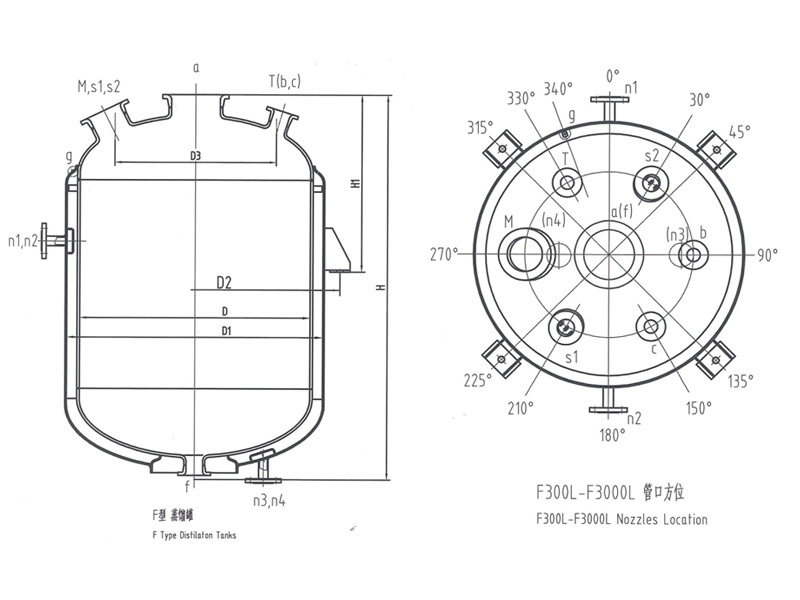

产品图
产品主要参数
| 公称容积 VN(L) | 实际容积 VN(L) | 实际容积 m3 | 主要尺寸(mm) | 管口公称直径 | 罐卡规格/数量 | ||||||||||||||
| D | D1 | D2 | D3 | H | H1 | H2 | H3 | a | M | T | s1s2 | b,c | f | n1-4 | g | ||||
| K300 | 369 | 1.75 | 800 | 900 | 1028 | 560 | 1280 | 870 | 350 | 390 | 150 | 125 | 70 | 80 | 80 | 80 | 25 | G1/2" | BM12/40 |
| K500 | 590 | 2.27 | 900 | 1000 | 1130 | 630 | 1510 | 1070 | 400 | 415 | 200 | 150 | 80 | 100 | 80 | 80 | 32 | G1/2" | BM12/36 |
| K1000 | 1250 | 4.54 | 1200 | 1300 | 1468 | 840 | 1820 | 1270 | 500 | 510 | 300 | 200 | 80 | 100 | 80 | 100 | 32 | G1/2" | BM12/52 |
| K1500 | 1720 | 5.00 | 1300 | 1450 | 1622 | 910 | 2040 | 1470 | 500 | 535 | 300 | 200 | 80 | 100 | 80 | 100 | 40 | G1/2" | BM12/56 |
| K2000 | 2280 | 6.42 | 1600 | 1750 | 1962 | 1120 | 1990 | 1330 | 600 | 630 | 400 | 200 | 100 | 125 | 125 | 125 | 40 | G1/2" | BM12/60 |
| K3000 | 3380 | 8.67 | 1600 | 1750 | 1962 | 1120 | 2480 | 1810 | 600 | 630 | 400 | 200 | 100 | 125 | 125 | 125 | 40 | G1/2" | BM12/60 |
